Road Stormwater Drainage Inlets: Hydraulic Study
On-grade
Inlet Type:
Double Bay (1900mm)
Without deflectors

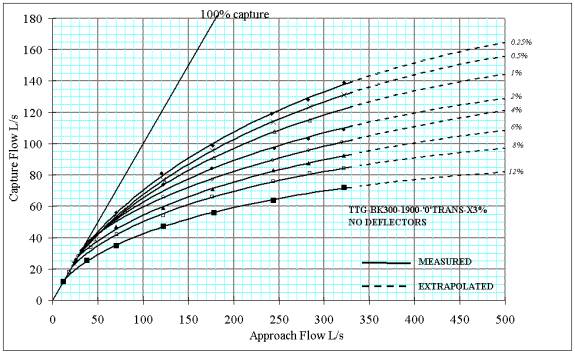

Capture Curves
Notes:
- Double Bay (1900mm)
- Without deflectors
- Upstream transition: N/A
- Downstream transition: N/A
- Inlet depression: 50mm
- Barrier Kerb and channel: 300mm
- Crossfall: 3%

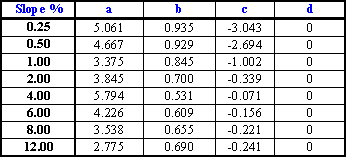

Curve Equations
Q = aXb+cX+d
Notes:
- Double Bay (1900mm)
- Without deflectors
- Upstream transition: N/A
- Downstream transition: N/A
- Inlet depression: 50mm
- Barrier Kerb and channel: 300mm
- Crossfall: 3%
Pictures & drawings of test
Longitudinal grade (%) with Approach flow (l/s)

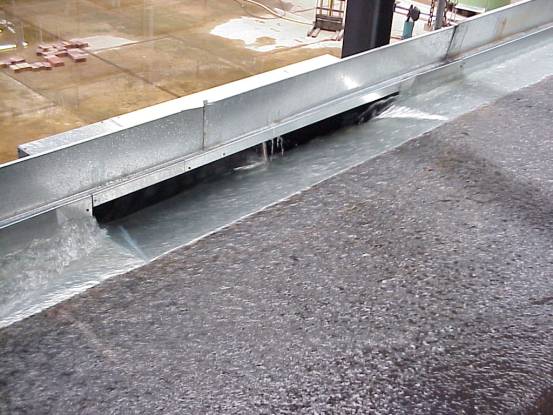

Grade 0.5% & flow 122l/s

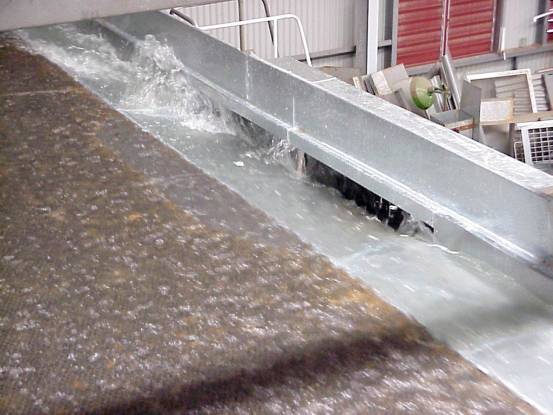

Grade 2% & flow 69l/s

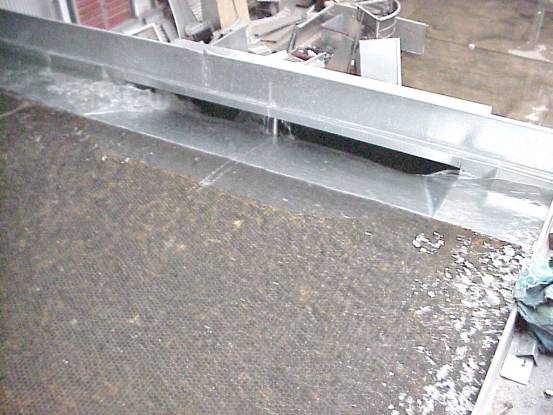

Grade 8% & flow 176l/s

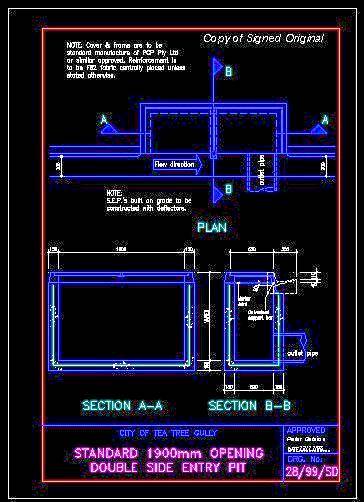

Inlet drawing details
Sag

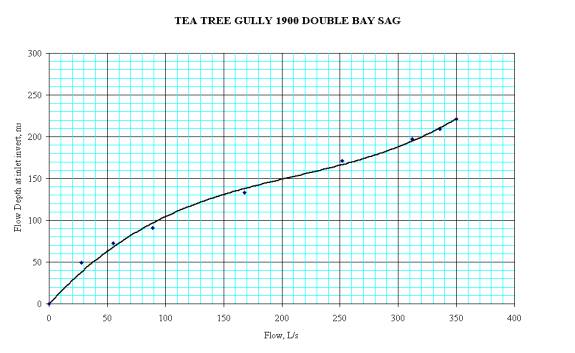

Capture curve
Notes:
- Double Bay (1900mm)
- Without deflectors
- Upstream transition: N/A
- Downstream transition: N/A
- Inlet depression: 50mm
- Barrier Kerb and channel: 300mm
- Crossfall: 3%
